Most popular and best transmitter for fpv quadcopter RC Multirotors

10 min read
1
0

If you looking for best transmitter for fpv quadcopter, Here are some Small transmitter, doesn’t get hot like more powerful transmitters. With right antennas, the range is easily enough for flying in a local park.Easy to install and good range for a “little” emitter ! Some polits said: Cheap & cheerful. I like the low power so it won’t interfere with other people’s devices. Works well & so far so good.

ImmersionRC Raceband 40CH 5.8GHz 600mW AV Transmitter Module for FatShark

 Free shipping

ImmersionRC Raceband 40CH 5.8GHz 600mW AV Transmitter Module for FatShark

Channel:40CH Raceband
Input voltage range: 6 – 25V (2S-6S)
Connector: SMA Famale
Clean output power: 600mW (+/- 1dB)
Features:

1. 37MHZ frequency seperation allows for flying up to 8 pilots simultaneously
2. Onboard quiet switching regulator, powers 5V cameras
3. Not affected by 2.4GHz R/C radios!
4. Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz (ImmersionRC/FatShark)
    All standard channels within the US/EU ISM Band
5. Frequencies: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (RaceBand)
    All Raceband channels legal using a Ham license within the USA
6. Raceband Channels 1-6 legal using a Ham license within the EU

Click Here To Check Current Price

This ImmersionRC Audio / Video Transmitters provides a clean and powerful transmission. 100% compatible with all Fat Shark and Immersion RC products. Strong penetration and a locked in signal gives you the best picture on 5.8GHz all in a lightweight, powerful, 600mW 5.8GHz transmitter.

Good build quality, strong signal. A bit bulky for 280 quadcopter, but still, best choice in my opinion.

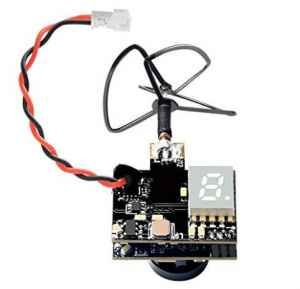

FPV AIO 600TVL Camera 200mW Adjustable Transmitte

Eachine 700tvl ET200 5.8G 32CH 200mW Mini Transmitter

Modulation : Broadband FM
Support Video Format : NTSC/PAL
Output Impedance : 75 Ohm
Output Signal : 23~24dBm
Output Power : 200mW
Wireless Channels : 32CH
Power Supply : 3S 11.1V
Working Voltage : 7V-24V
Output Voltage to Camera: 3.6-5.5V
Current : 190mA
Audio Carrier : 6.5MHz
Antenna Connector : RP-SMA
Dimention : 38mm x 22.5mm x 6mm
Weight : 6g(without antenna) 15g (with antenna)

Click Here To Check Current Price

With voltage step-down function to 3.6V-5.5v , can work directly with 3S 11.1V battery. This item is as good as expected, nice value for the money and it is smaal and suits mini quads fine! Overall is a good choice for buying.

best transmitter for fpv quadcopter

So small. really powerful with good antenna. I LOVE THAT THERES NO SWITCHES. ALL BUTTON TO CHANGE CHANEL !!! it’s great

I have 5 of these on different quads and airplanes and they are great for the money. I have yet to have a problem with any of then. Signal is clear and the channel settings are locked in. I did have one of them come to me DOA but Banggood took care of it right away.

Eachine ET600R FPV 5.8G 40CH 600mW Mini AV Transmitter with RaceBand

 Free shipping

Eachine ET600R FPV 5.8G 40CH 600mW Mini AV Transmitter with RaceBand

Modulation : Broadband FM
Support Video Format : NTSC/PAL
Output Impedance : 75 Ohm
Output Signal : 27~28dBm
Output Power : 600mW
Wireless Channels : 40CH   (with RaceBand)
Power Supply : 3S 11.1V
Working Voltage : 7V-24V
Output Voltage to Camera: 3.6-5.5V
Current :190mA
Audio Carrier : 6.5MHz
Antenna Connector : RP-SMA
Dimention : 38mm x 22.5mm x 6mm
Weight : 6g(without antenna) 15g (with antenna)


Click Here To Check Current Price

Features:
40 channels: Cover A,B,E,F,R bands
RaceBand: When A, B, E and F LEDs are turn on together, ET600R is working on Band R, the frequencies for racing.

Works good actually. However, I get a lot of static and that concerns me, but, I’ve installed a Ferrite ring to see if it will be less static. Next step will do check with a regular fatshark 250mw to see if the fault lies with the Vtx. But so far, I’m happy with it.

Perfecto y rapido en el envio, bien embalado, recomiendo este producto y el vendedor. Perfect! fast delivery! good package, recommend this product and seller.

FPV AIO 600TVL 170 Degree mini Camera 5.8G 8CH Transmitter All in One Only 3g

 Free shipping

FPV AIO 600TVL 170 Degree mini Camera 5.8G 8CH Transmitter All in One Only 3g

Camera: CMOS,600TVL,170 degree
Transmitting Frequency: 5705-5925MHz,5.8G 8CH
FPV Power: 200mW
Distance: ≤300m
Power Supply: 3.7V-5V(1S battery recommanded, will last 15min)
Connector: 1.25mm JST connector
White Cable: +
Black Cable: –
Size: 18*14*21mm
Weight: 3.6

Click Here To Check Current Price

Features:
All-in-one design,integrated with camera and transmitter
Super mini and light, only 3.6g
With mini microphone, make FPV real
Frequency: 5705,5645,5665,5685,5885,5905,5925,5945

Toute petite. 4g sur la balance. Avec une lipo de 100mAh, on obtient environ 17 minutes de video. L’image est tres correcte avec de belles couleurs, un ciel bleu, mais bleuuuuuu. Je l’ai testée sur un Hubsan H107L, pas de problèmes, l’engin la porte tres bien. Sur un Qbot Micro encore mieux, on les croirait faits l’un pour l’autre. je n’ai pas encore teste la portee mais je pense que les 300m doivent etre largement depasses. Produit a recommander sans hesitations. Il y a juste que la prise est vraiment petite, il faut trouver la batterie qui va dessus. Pour ma part, celle d’un WlToy V272 casse fait parfaitement l’affaire, je la recharge sur la carcasse de l’engin. content de mon achat.

Skyzone FPV TS5813S 5.8G 25mW 40CH Mini AV Wireless Transmitter For Mini Multicopter QAV250

Skyzone FPV TS5813S 5.8G 25mW 40CH Mini AV Wireless Transmitter For Mini Multicopter QAV250

Connector: RP-SMA
Video Format: NTSC/PAL
Output Inpedance: 50Ohm
Output Power: 13-14dBm
Operating Voltage: 7-24V
Supply Current: 50mA
Operating Temp.: -10~85℃
Video Band Width: 0~8.0MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10k Ohm
Dimension: 40 x 23 x 8mm
Weight: 7.3G(without antenna

Click Here To Check Current Price

Purchased this as 25mw is the legal max for where I live. It works really well and doesn’t get as hot as other TX I have used in the past.

Recieved it very quickly came with all the cables needed even a usb output for external cameras very light And it is very mini mini TX.

verry small emiter but here in France 25mw is the maxi autorised. Easy to install and good range for a “little” emitter !
