You have probably heard of Charpu before, but do not know What Are The Charpu FPV Setup? In this article, you will see the fpv setting list and his videos.
About Charpu
Charpu is a brilliant FPV pilot who is known worldwide because of his flight skill is remarkable and is one of the best drone racers in the world, all over the Internet of drone racing.
Therefore, all the fpv race organizers would like to invite him and other famous pilots to participate in.
So awesome pilot! You must want to know, What’s the Charpu FPV Setup?
Charpu FPV Setup
Video credit: Tested
| IMAGE | ITEMS | WEIGHT | CHECK |

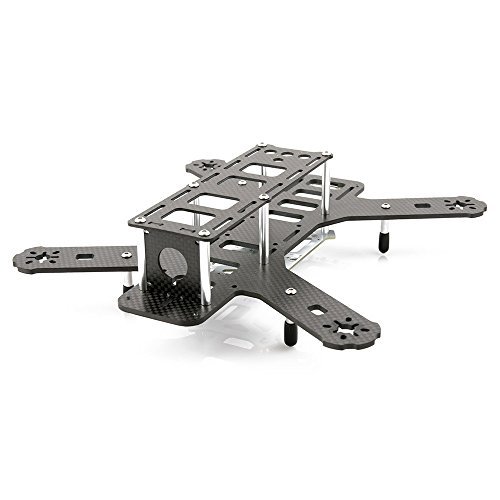

 | Lumenier QAV250 Carbon Fiber Mini FPV | 122 g | Get It Now |

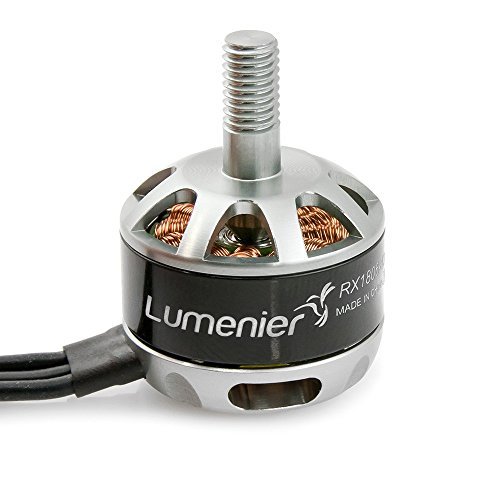

 | Lumenier RX1806-14 2300kv Motor | 0.8 ounces | Get It Now |

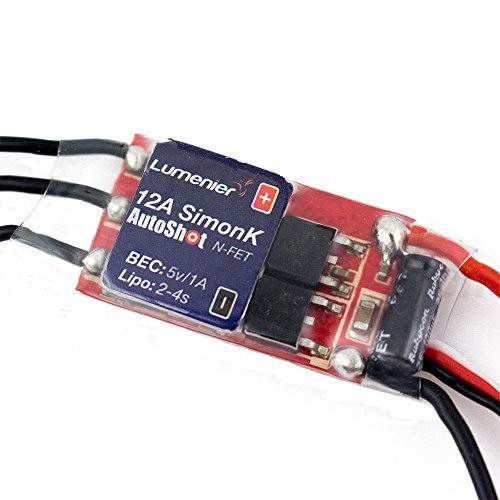

 | Lumenier 2-4s N-FET 12 Amp ESC | 0.5 ounces | Get It Now |

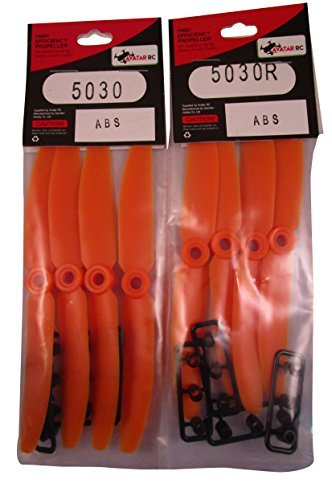

 | Gemfan 5030 Orange Propellers | 2 g | Get It Now |
 | Lumenier 1800mAh 3s 35c Lipo Battery | 2.4 ounces | Get It Now |
 | Acro Naze32 Rev 6 Flight Controller | 5 g | Get It Now |
 | FrSky X9D 16-channel 2.4ghz Radio Transmitter | 1.8 pounds | Get It Now |

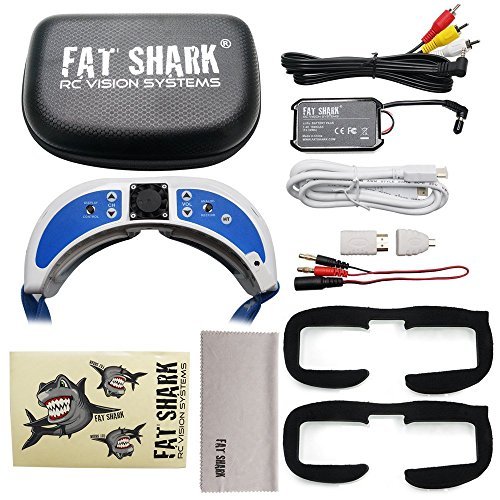

 | Fat Shark Dominator V3 Headset Goggles | 1.6 pounds | Get It Now |
Flight Controller Setup Particularly
Video credit: FliteTest
After watching above charpu video, you found that his fpv flight controller is mounted under the main frame on the PDB.(Look at the below screen shot)
This setting way can get more extra space that can be put other parts under the frame, and also can protect your flight controller etc.
It is one of the best way to mount the flight controller.
HOW TO?
That’s too much bulk under frame to hard to fit the FC on that. Otherwise, the battery could move forward to strike the FC,camera and other parts, it is very danger.
1.Directly weld the ESC connections to the flight controller.
2.Put all the the flight controller, Voltage Regulator and regulators, and the LC filter all onto the PDB.
3.In order to fix the battery, take several small holes with standoffs and mount them as sort of a battery barrier to prevent battery hit other components.
Conclusion
Chapu tend to more freestyle rather than speed racing competitions. It can be dazzling when watching his performance flipping the craft in twenty different ways.
His skills of freestyle are good for us to learn (5 tips about learning to fly fpv drone like Charpu ) and He has become the unofficial face of the sport. So that the Lumenier make 2 frames named by his name, There are Durable QAV-X CHARPU FPV Racing Quadcopter Frame and QAV210 CHARPU Edition. You could click them to know more and purchase them as your FPV Setup just like Charpu.
