Main FPV Drone Parts List You Need

Quadcopter parts list pdf – FPV series from 150mm to 280mm

Are you looking for quadcopter parts list pdf and plan to make a good FPV quadcopter at home? If you know the effect between parts of the FPV,I believe that you will inevitably do it in a distinctive way. Here are collected some FPV quadcopter parts list from 180mm to 280mm,which are only for reference purpose.

FPV 150mm quadcopter parts list

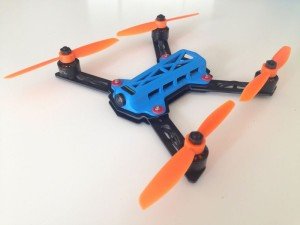

quadcopter parts list pdf150mm Multirotor, 4045 props, EYEFLY 1306 3100KV, Bang good 600 TVL cam, Minim Micro OSD,Naze32 mini Afro rev3, FT952 200 mW, DYS 20A BlHeli 13.2

Frame: Custom Quadcopter Frame

ESC: DYS/RCtimer SN20a/BL20a

Flight Controller: Afro Mini 32

LiPo: battery 3S 1300mAh 45C – 90C

Video Transmitter: FPV FT952 5.8GHz 32CH 200MW

FPV Camera: 600TVL 1.8mm Lens 170 Degree Pinhole



FPV 180mm quadcopter parts list

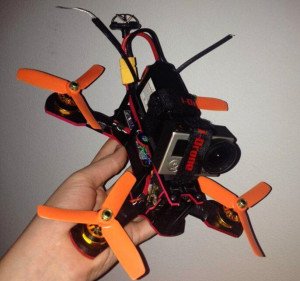

quadcopter parts FPV180Frame: Custom Quadcopter Frame

Motor: DYS BE1806 2300Kv

Prop: HQProp 4045 Bullnose Glass Composite

ESC: Favourite Littlebee 20a

Flight Controller: Naze32 Acro

Quadcopter battery: Tattu 1300mAh 45C 3S1P

Video Transmitter: DIY 40CH 200mW TX (A-Band, B-Band, E-Band, F-Band and Race-Band!)

Radio Receiver: FrSky D4R-II 2.4GHz (4ch PWM/8ch CPPM, telemetry)

FPV Camera: CXD4140GG Sony effio-e dsp ccd (700TVL, 1/3″)

HD Camera: GoPro Hero 3+ Black Edition (without casing)



FPV 200mm quadcopter parts list

quadcopter parts listFrame: Custom Quadcopter Frame

Motor: Generic motor

Prop: HQProp 4045 Bullnose Glass Composite

ESC: EMAX 12A Simon Series

Flight Controller: OpenPilot CC3D

Lipo battery: 1300mah 3s 45c-75c

Video Transmitter: Eachine ET600 700tvl 5.8G 32CH 600mW

Radio Receiver: OrangeRx R820X 8Ch 2.4 GHz

FPV Camera: mini 600tvl Sony Super HAD CCD



FPV 210mm quadcopter parts list

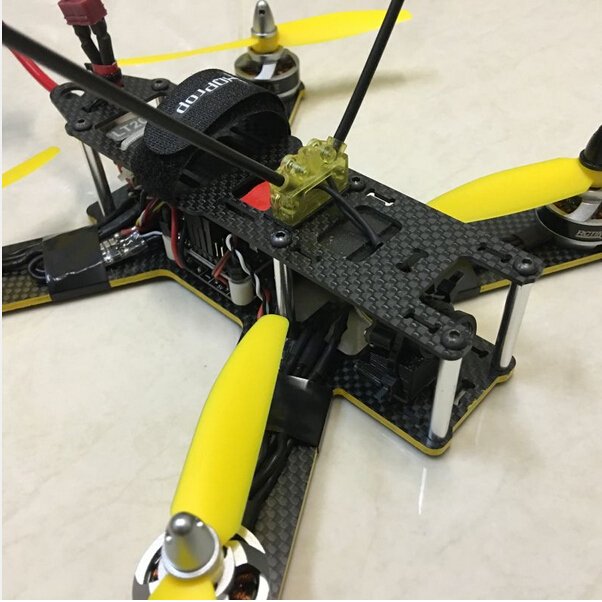

quadcopter parts FPV200Frame: Custom Quadcopter Frame

Motor: Generic motor

Prop: Gemfan 5030 ABS/Nylon (multi-color setup)

ESC: DYS/RCtimer SN20a/BL20a

Flight Controller: Naze32 Acro

LiPo: Mylipo 1500mAh 3S 35/70C

Video Transmitter: Boscam 200mW 5.8GHz

Radio Receiver: Futaba creceiver



FPV 230mm quadcopter parts list

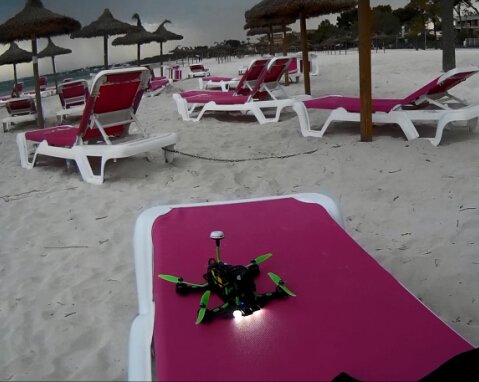

quadcopter parts FPV230Frame: Xhover MXP230 G10 Version

Motor: Cobra 2204 2300Kv

Prop: HQProp 5045 Bullnose Glass Composite

ESC: HobbyKing 12A BlueSeries

Flight Controller: Naze32 Acro

LiPo: Battery 4S 1300mAh 45C – 90C

Video Transmitter: ImmersionRC 600mW 5.8GHz

Radio Receiver: FrSky D4R-II 2.4GHz (4ch PWM/8ch CPPM, telemetry)

FPV Camera: CC1333 Sony Super HAD 600TVL CCD Mini 2.8mm (cased)

HD Camera: RunCam HD



FPV 250mm quadcopter parts list

quadcopter partsFrame: Dart 250 FPV With Power Distribution, Clean and Dirty and LED Illumination

best quadcopter motors: Multistar “Baby Beast” 2206 2150KV (V2)

Prop: HQProp 5045 Bullnose Glass Composite

ESC: SimonK 10A ESC (without label)

Flight Controller: OpenPilot CC3D

LiPo: 3s 2200mA batteria lipo 40C 70C-max

Video Transmitter: SkyZone FPV 5.8GHz 600mW 32CH A/V Transmitting (TX) Module TS832 RP-SMA

Radio Receiver: RLINK 16-CHAN LONG RANGE UHF SYSTEM

FPV Camera: Mini CMOS FPV Camera 520TVL 90deg Field Of Vision 0.008LUX

HD Camera: GoPro HERO3 Black Without Housing



FPV 260mm quadcopter parts list

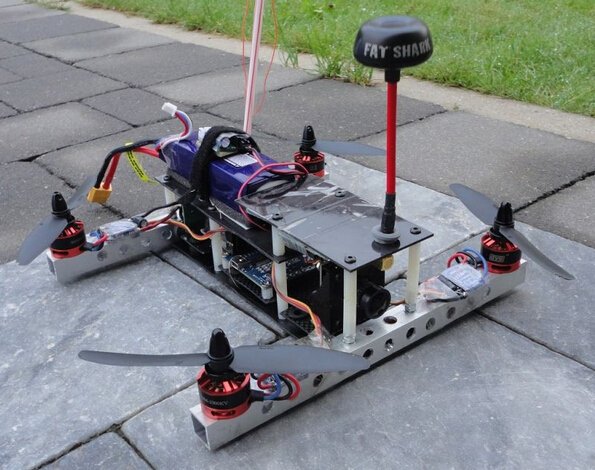

quadcopter parts FPV260Frame: Custom Quadcopter Frame

Motor: DYS BE1806 2300Kv

Prop: Gemfan 5030 ABS/Nylon (multi-color setup)

ESC: HobbyKing 12A BlueSeries

Flight Controller: Hobbyking MultiWii 328P Flight Controller w/FTDI & DSM2 Comp. Port

LiPo: LIPO 1800mah 3S 65~130C

Video Transmitter: ImmersionRC 25mW 5.8GHz

Radio Receiver: Corona Synthesized Receiver 4Ch 40Mhz (v2)

FPV Camera: CXD4140GG Sony effio-e dsp ccd (700TVL, 1/3″)

HD Camera: None



FPV 280mm quadcopter parts list

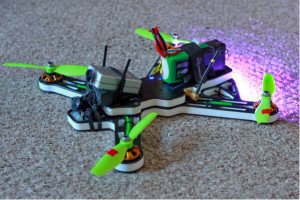

quadcopter parts FPV280Frame: Fossils Stuff Gravity 280

Motor: DYS BE2204 2400Kv

ESC: DYS/RCtimer SN20a/BL20a

Flight Controller: Naze32 Acro

LiPo: 4S 1800mAh 35C – 70C

Video Transmitter: SkyZone TS5823 5.8GHz 200mW

Radio Receiver: Walkera Devo RX-701 2.4GHz Receiver

FPV Camera: Fatshark 600TVL CMOS Camera

HD Camera: RunCam HD

[insert page=’show-popular-fpv-build-list-build-your-own-fpv’ display=’excerpt’]

If you want to download these quadcopter parts list pdf, pls click here .
